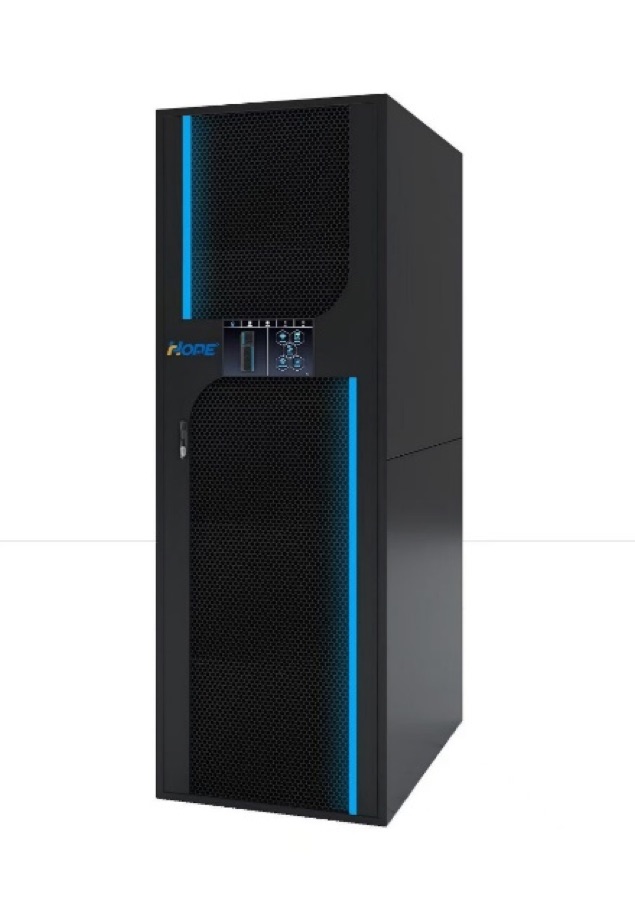

Eight integrated modules — power, UPS, cooling, security, fire protection and intelligent monitoring — pre-assembled into a single deployable unit. Deploy anywhere in weeks, not months.
Liquid cooling handles the most power-dense AI chips that air cooling simply cannot manage. 1000× greater heat transfer coefficient vs. air.
Integrated liquid cooling with smart power management achieves PUE 1.10 — a fraction of the 1.5+ typical of conventional air-cooled deployments.
At 45dB or below, the cabinet is suitable for office lobbies, retail spaces and edge locations where noise is a constraint.
Factory-integrated and pre-tested. All eight subsystems arrive configured and validated — reducing on-site work to connection and commissioning only.
Every cabinet ships as a complete, tested system. No third-party integration. No interface gaps. One vendor, one SLA.
Smart PDU with per-outlet monitoring and remote switching. Real-time energy metering.
Online UPS provides zero-transfer-time protection. Scalable from 3kW to 20kW within the same chassis.
Self-contained precision cooling unit. No installation required — works independently of building HVAC.
Temperature, humidity, water detection, smoke sensors, access control and fire suppression — all pre-wired and integrated.
10.1" touch screen dashboard. 4G/IoT remote management. Multi-site centralised monitoring from a single pane of glass.
Dual cooling pathways: backplane HX for rack-level heat removal, cold plates for direct chip-level cooling of CPUs and GPUs.
Seismic resistance to Intensity 8/9. Maximum load >2800kg. Designed for both indoor and outdoor edge deployments.
Heptafluoropropane (HFC-227ea) automatic suppression system, 3kg capacity. Clean agent — no residue, safe for electronic equipment.
| Power Range | 3–20kW per cabinet |
| PUE | 1.10 |
| Noise Level | ≤45dB |
| Frame Profile | High-strength 32-fold |
| Seismic Rating | Intensity 8/9 |
| Max Load | >2800kg |
| Chip Support | 500W–1500W CPU/GPU |
| Coolant | Non-toxic, non-flammable dielectric |
| UPS Capacity | 3–20kW online |
| Fire Suppression | HFC-227ea, 3kg |
Comprehensive visibility across every cabinet function — accessible remotely via 4G/IoT from a centralised management console.
Real-time load, voltage, current and energy consumption per outlet.
Continuous cooling loop monitoring with automatic adjustment based on inlet temperature.
Temperature, humidity, water leak detection and air quality sensors throughout the cabinet.
Door sensor, CCTV, motion detection and smoke / fire alerts with immediate push notification.
Full remote management via 4G/IoT. Multi-site dashboard aggregates all cabinets in one view.
Our team will configure an Intelligent Cabinet solution for your exact power, cooling, and deployment requirements.
